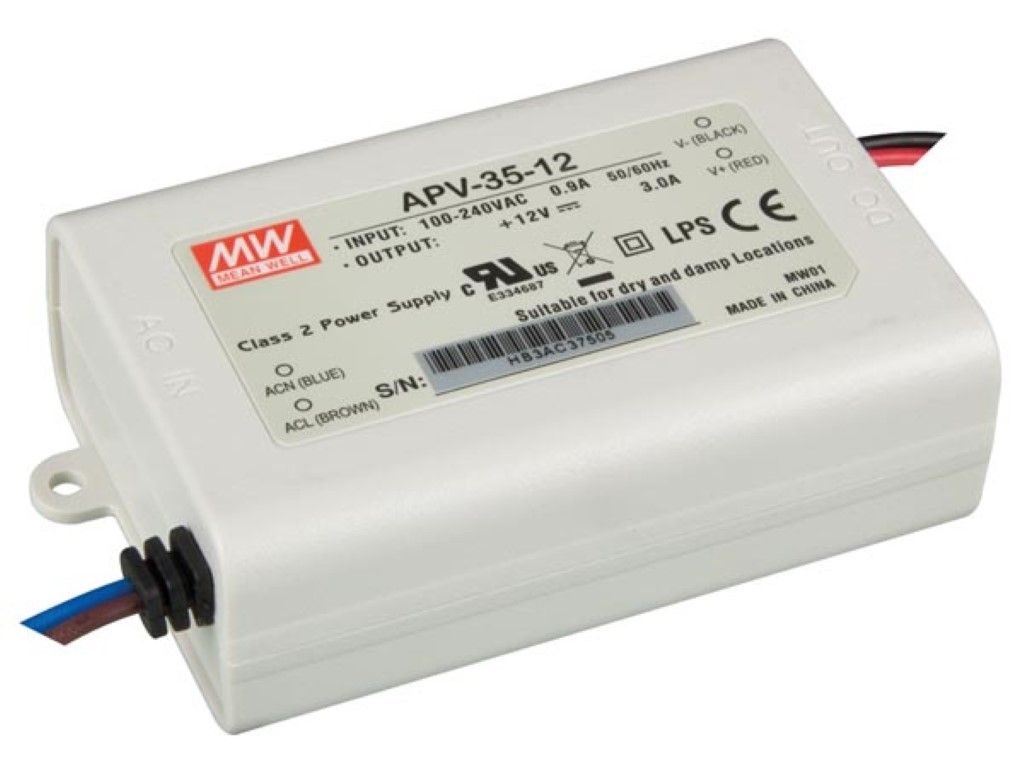

constant voltage led driver - single output - 35 w - 12v (APV-35-12)
Description
CARACTERISTIQUES :
-Constant voltage mode power supply
-Universal AC input / Full range
-Withstand 300VAC surge input for 5 seconds
-Protections: Short circuit / Overload / Over voltage
-Cooling by free air convection
-Small and compact size
-Fully isolated plastic case
-IP30 design
-Pass LPS
-Suitable for LED lighting and moving sign applications (Note.8)
-Low cost, high reliability
-prétesté sur 100 % de la puissance
-2 years warranty
-POUR L'USAGE PROFESSIONNEL
-Cet appareil doit être installé par un technicien qualifié.
SPECIFICATIONS :
-OUTPUT:
-tension CC: 12V
-courant nominal: 3A
-plage de courant: 0~3A
-RATED POWER : 36W
-RIPPLE & NOISE (max) Note. 2: 150mVp-p
-VOLTAGE TOLERANCE Note.3: +/-5.0%
-régulation de ligne: +/-1.0%
-régulation de charge: +/-2.0%
-SETUP, RISE TIME Note.6: 1500ms, 40ms / 230VAC 1500ms,40ms / 115VAC at full load
-temps de maintien (typ.): 20ms/230VAC 12ms/115VAC at full load
-entrée:
-VOLTAGE RANGE Note.4: 90~264VAC 127~370VDC
-FREQUENCY RANGE: 47~63Hz
-rendement (typ.): 83%
-courant CA (typ.): 0.5A/230VAC 0.75A/115VAC
-INRUSH CURRENT(max.): COLD START 45A (twidth=440µs measured at 50% lpeak) at 230VAC
-LEAKAGE CURRENT: 0.25mA/240VAC
-protection:
-surcharge:
-110~160% rated output power
-Protection type : Hiccup mode, recovers automatically after fault condition is removed
-OVER VOLTAGE:
-13.8~16.2V
-Protection type : Shut down o/p voltage, re-power on to recover
-environnement:
-WORKING TEMP.: -30~70°C (referring to" Derating curve")
-humidité de service: 20 ~ 90% RH non-condensing
-STORAGE TEMP., HUMIDITY: -40 ~ +80°C, 10 ~ 95% RH
-TEMP. COEFFICIENT: +/-0.03%/°C(0 ~ 50°C)
-vibration: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
-sécurité & EMC:
-SAFETY STANDARDS: UL8750 , CSA-C22.2 No. 250.0-13 approved; design refer to EN60950-1
-tension d'isolation: I/P-O/P:3KVAC
-SOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH
-EMC EMISSION: Compliance to EN55022,EN61000-3-2 Class A,EN61000-3-3
-EMC IMMUNITY: Compliance to EN55024,EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A
-autres:
-MTBF: 692.8K hrs min. MIL-HDBK-217F (25°C)
-dimensions: 84*57*29.5mm (L*W*H)
-emballage: 0.18Kg; 72pcs / 14Kg/ 0.92CUFT
