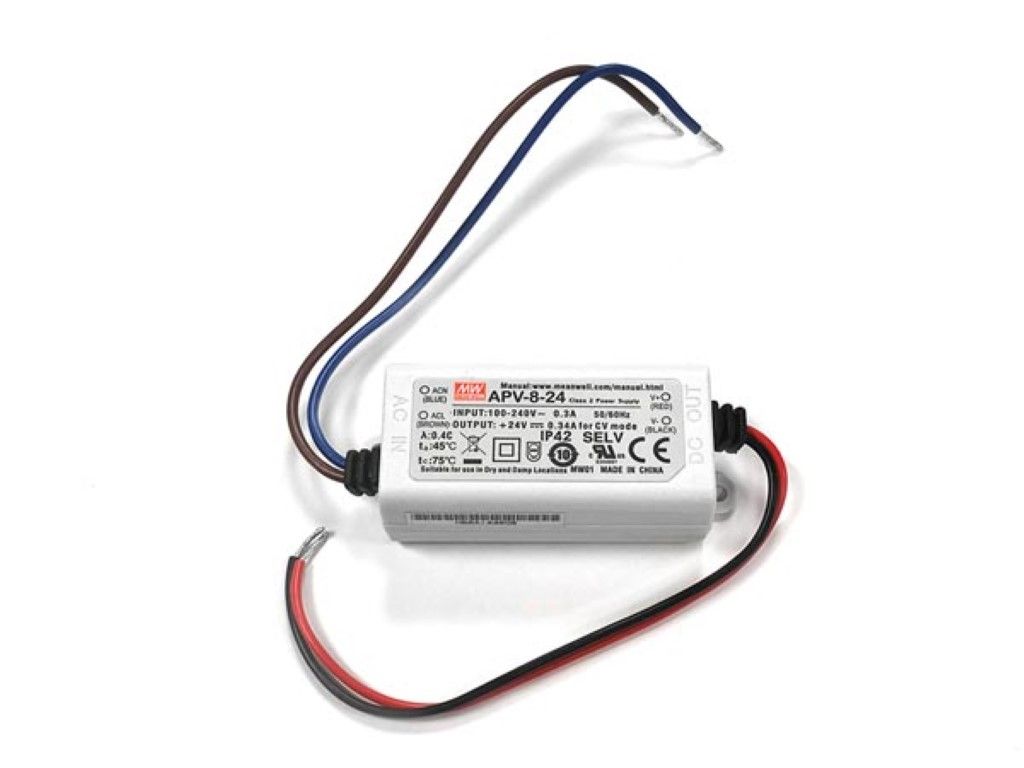

Switching Power Supply - Single Output - 8 W - 24 V (APV-8-24)
Description
CARACTERISTIQUES :
-universal AC input / full range
-class II power unit, no FG
-IP 42 design
-cooling by free convection
-100 % full load burn-in test
-tension continue
-boîtier en plastique complètement isolé
-compact et léger
-protections: short circuit / overload / over voltage
-consommation hors charge: < 0.5 W
-économique / haute fiabilité
-2 ans de garantie
-[b] usage professionnel uniquement [/b]
-Cet appareil doit être installé par un technicien qualifié.
SPECIFICATIONS :
-output:
-DC voltage: 24 V
-rated current: 0.34 A
-current range: 0 ~ 0.34 A
-rated power: 8.16
-ripple noise: 300 mV p-p
-voltage tolerance: 5.0 %
-line regulation: 1.0 %
-load regulation: 2.0 %
-setup, rise time: 500 ms, 30 ms / 230 VAC 1500ms, 30 ms / 115 VAC at full load
-hold up time: 20 ms / 230 VAC at full load
-entrée:
-voltage range: 90 ~ 264 VAC 127 ~ 370 VDC
-plage de fréquence: 47 ~ 63 Hz
-efficiency: 81 %
-courant CA: 0.15 A / 230 VAC 0.3 A / 115 VAC
-inrush current: cold start 70 A at 230 VAC
-courant de fuite: 0.25 mA / 240 VCA
-protection:
-short circuit: hiccup mode, recovers automatically after condition is removed
-surcharge: above 105 % rated output power
-surtension: 27.6 ~ 32.4 V shut off o/p voltage, clamping by zener diode
-environnement:
-working temperatue: -30 ~ +70 °C
-working humidity: 20 ~ 90 % RH non-condensing
-température de stockage, humidité: -40 ~ 80 °C, 10 ~ 95 % RH
-temperature coefficient: 0.03 %
-vibration: 10 ~ 500 Hz, 2 G 10 min / 1 cycle, period for 60 min each along X, Y, Z axes
-saftey & EMC:
-safety standards: UL8750, CSA C 22.2 No 250.0 - 08 approved; design refer to EN60950-1, EN61347-1, En61347-2-13
-withstand voltage: I/P - O/P : 3.75 K VAC
-isolation resistance: I/P - O/P :> 100 Ohms / 500 VDC / 25 °C / 70% RH
-EMC emission: compliance to EN55022, EN61000-3-2 class A, EN61000-3-3
-EMC immunity: compliance to EN55024, EN61000-4-2,3,4,5,6,8,11 ; ligth industry level (surge 2KV), critearia A
-autres:
-MTBF: 1631.5 K hrs min MIL-HDBK-217F (25 °C)
-dimension: 60 x 30 x 23.5 mm
-emballage: 0.09 k
